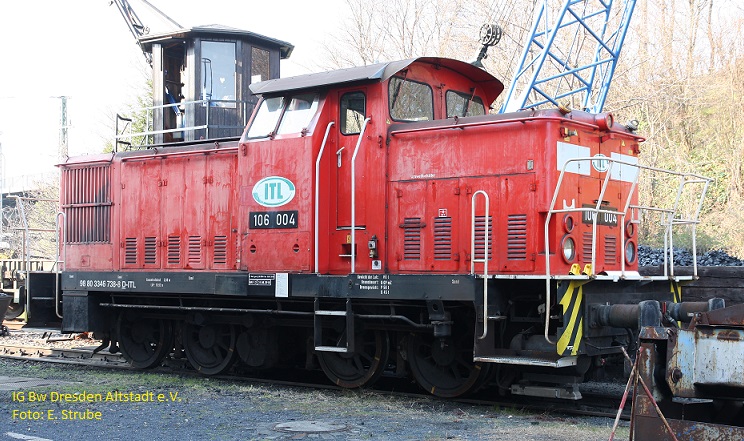

346 738-8 (DR 106 738-8; ITL 106 004)
Year of manufacture | 1971 |
Manufacturer | VEB Lokomotivbau Eiekrotechnische Werke "Hans Beimler" Hennigsdorf |
Manufacturing number | 12999 |
Wheel arrangement | D |
Genus | V 60 |
Type | |
Owner | IG Bw Dresden Altstadt e.V. |
Museum's vehicle since | 2020 |
Accessibility | always |
Technical Data
Length over buffers | (mm) | 10880 |
Complete wheelbase | (mm) | 5 600 |
Diameter of driving wheel | (mm) | 1 100 |
Height over rail | (mm) | 4 200 |
Operating weight (including all supplies) | (t) | 64 |
Maximum speed | (km/h) | 60 |
Power | (PS) | 650 at 1500 rpm |
Brake type | K-GP m.Z. | |
Axle load | (t) | 16 |
Maximum tractive effort on starting | (kN) | 198 |
Regular tractive effort | (kN) | 96 |
Engine type | 12 KVD 21 SVW | |
Type of drive | Diesel-hydraulic; W-K-K | |
Track gauge | (mm) | 1 435 |
